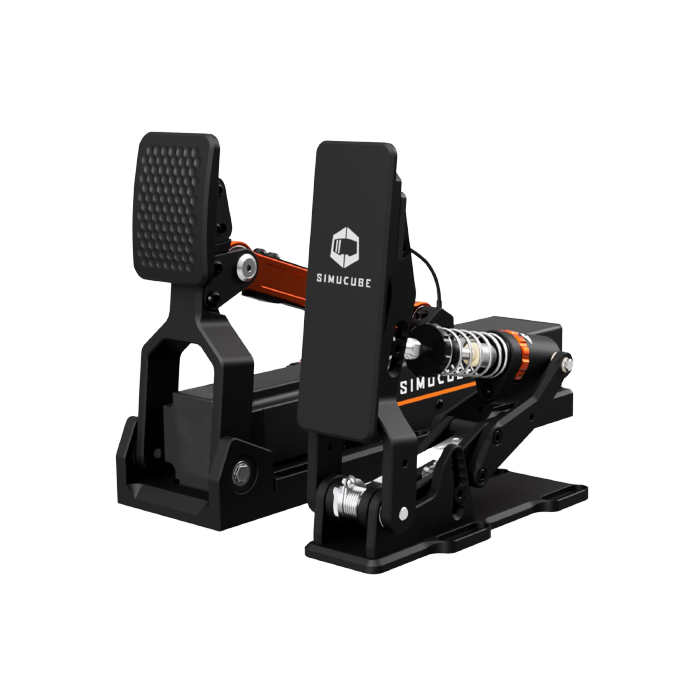

Simucube ActivePedal Ultimate
ex VAT
Simucube ActivePedal
Simucube’s new ActivePedal is quoted as the “last pedal you will need” using it’s unlimited adjustability, repeatability, and simulator telemetry data-based force feedback effects, it adds a whole new dimension to racing.
- Configure as a brake, throttle, or clutch
- Maintenance free
- ABS feedback
- Force feedback
- Traction control
- 150kg brake pressure
Edit accurate physical pedal profiles for your different races. Pick your desired profile before the race starts and go. With the click of a button you can turn it into a brake, throttle, or clutch. Adjustable ABS and force feedback feel make this the best all around option.
Simucube’s unbeatable service and hardware means that the pedals are maintenance free with no rubbers, no messy oil, no springs, no hydraulic cylinders and no degrading parts to service and replace.
Simucube’s Active means it produces all pedal force with a motorized actuator and control algorithms. This is the opposite to passive pedals which rely on rubbers, springs or cylinders. Active control is the magic behind infinite adjustability and consistency.
Technical details:
- Weight: 6kg
- Dimensions: 100mm x 250mm x 402mm
- Pedal movement: Download file here
- Mounting hole dimensions: Download file here
- Force feedback
- G-force
- ABS
- RPM
- Configurable as a brake, throttle, or clutch
- All aspects of a pedal are configurable (Forces, travel lengths, curves, damping, friction)
What's included:
- Simucube ActivePedal
- Power supply
- Simucube Link
- USB cable
- Ethernet RJ45 (Used to connect Simucube Link and ActivePedal)
- Fixing screws
- Torx allen key
- Quick start guide
- Stickers
- Simucube ActivePedal
- Daisy chain cable
- Ethernet switch
- RJ 45 cable
- Fixing screws
- Torx allen key
Compatibility:
- We have developed a specialized connector cable to enable direct integration of Heusinkveld Pedals with the Simucube ActivePedal software.
- For optimal functionality, we suggest purchasing the connector. Without it, the brake pedal would have to remain connected to the clutch and throttle, while also accommodating the ActivePedal.
- While it’s possible to use the Ultimate+ without the connector, we highly recommend using it for the best experience. With the connector, you can adjust all pedals in one software instead of having to use two separate ones.
- You can use any third-party pedals with Simucube ActivePedal. However, you won’t be able to use the ActivePedal software to adjust the throttle and clutch. You will need to use their native software.
Warranty:
5 years Manufacturer Warranty
