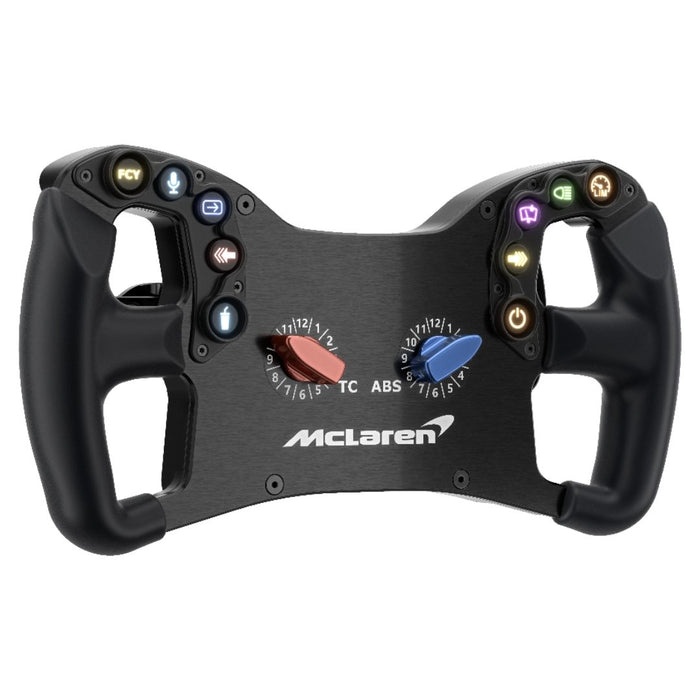

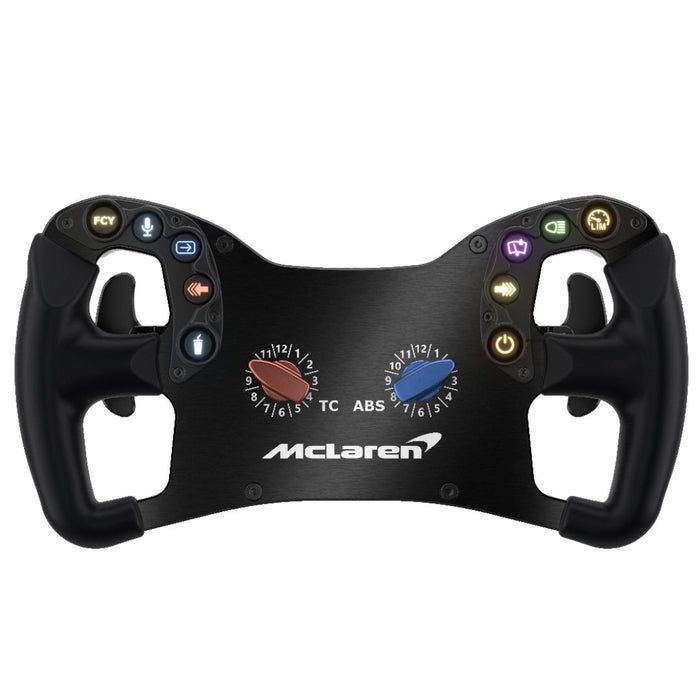

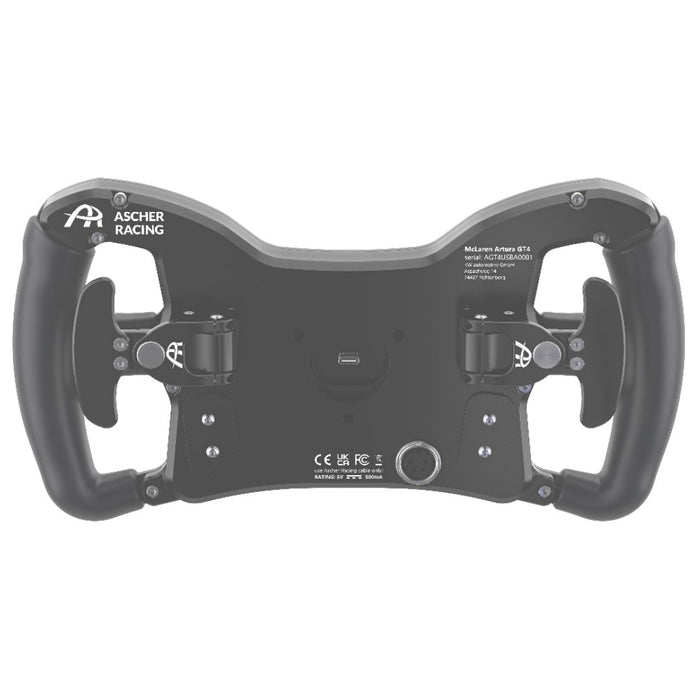

Ascher Racing McLaren Artura Wheel - GT4 USB

Ascher Racing McLaren Artura Wheel - GT4 USB

by Ascher Racing
€716,19 - €716,19
€716,19
€716,19 - €716,19
€716,19

ex VAT

General Information

  • 300mm diameter
  • 6 x 70 mm bolt pattern
  • Robust, shielded coiled cable with industrial Binder M16 connector (USB version only)
  • QR spacer may be required to create sufficient clearance to the wheelbase (connector length approx. 64mm)
  • Mass: 1300g



Scope of delivery:

  • Ascher Racing McLaren Artura GT4 sim racing steering wheel
  • Ascher Racing McLaren sticker set
  • M5 x 12 mm stainless screws to mount QR



Technical Details



McLAREN ESPORTS WHEEL

  • Official steering wheel of the new McLaren Artura GT4
  • Identical components of real-racing steering wheel and Esports variant
  • Maximum grip level from ergonomically improved rubber grips and 300 mm wheel diameter used in the real race car



USB WHEEL

  • Telemetry-based and animated RGB lighting
  • Freely configurable button mapping (e.g., to enable barrier-free switching to other steering wheels) & modification of all thumb encoders & rotaries possible
  • Non-linear clutch curves adjustable (various predefined progressive/degressive/s curves selectable or individual definition
  • Encoder pulse width adjustable (defines how long the button is triggered per click)
  • Selection of the analog input mode (e.g., for clutches) & quick calibration of the analog axes directly on the steering wheel without the use of software
  • Low power consumption of only max. 500mA according to USB specification
  • No power injection necessary
  • Unrestricted operation with all PC mainboards
  • Unrestricted operation with Asetek QR system



INPUTS LIKE IN THE REAL RACE CAR

  • 10 x RGB illuminated push buttons (16 Mio. colors); individually adjustable coloring and tactile feedback
  • 2 x 12-position rotary switches
  • 2 x Gen6 magnetic and silenced motorsports single paddle shifters
  • Upgradeable range of functions (double shifter, clutch paddles)



HIGH-QUALITY FINISH

  • Machined out of automotive aluminum
  • Black anodized and laser engraved
  • Brushed front plate surface finish
  • Glass bed blasted paddle surface finish



GEN6 MAGNETIC DOUBLE PADDLE SHIFTERS

  • New generation of magnetic shifters developed from scratch for motorsport applications
  • Machined and anodized out of automotive aluminum
  • Proven strong snap-action force
  • Silenced by damped rubber stops on both ends with unlimited precision due to tight tolerances
  • Free of play due to preloaded ball bearings
  • Marginal hysteresis for noise-free and precise gear changes
  • No switches inside –extremely durable hall sensor
  • Unlimited interchange possibilities due to identical mounting points for double shifter paddles



LASER-ETCHED BUTTONS

  • Laser-etched button caps with most common symbols available
  • Easily interchangeable due to two-piece-design – no need to open the wheel
  • Additional labels for various common steering wheel inputs



Compatibility



SC (WIRELESS):
  • Simucube 2 Sport
  • Simucube 2 Pro
  • Simucube 2 Ultimate
USB:
  • Fanatec
  • Asetek
  • Simagic
  • VRS Direct Force
  • Accuforce
  • U.v.m.
